T-LINER

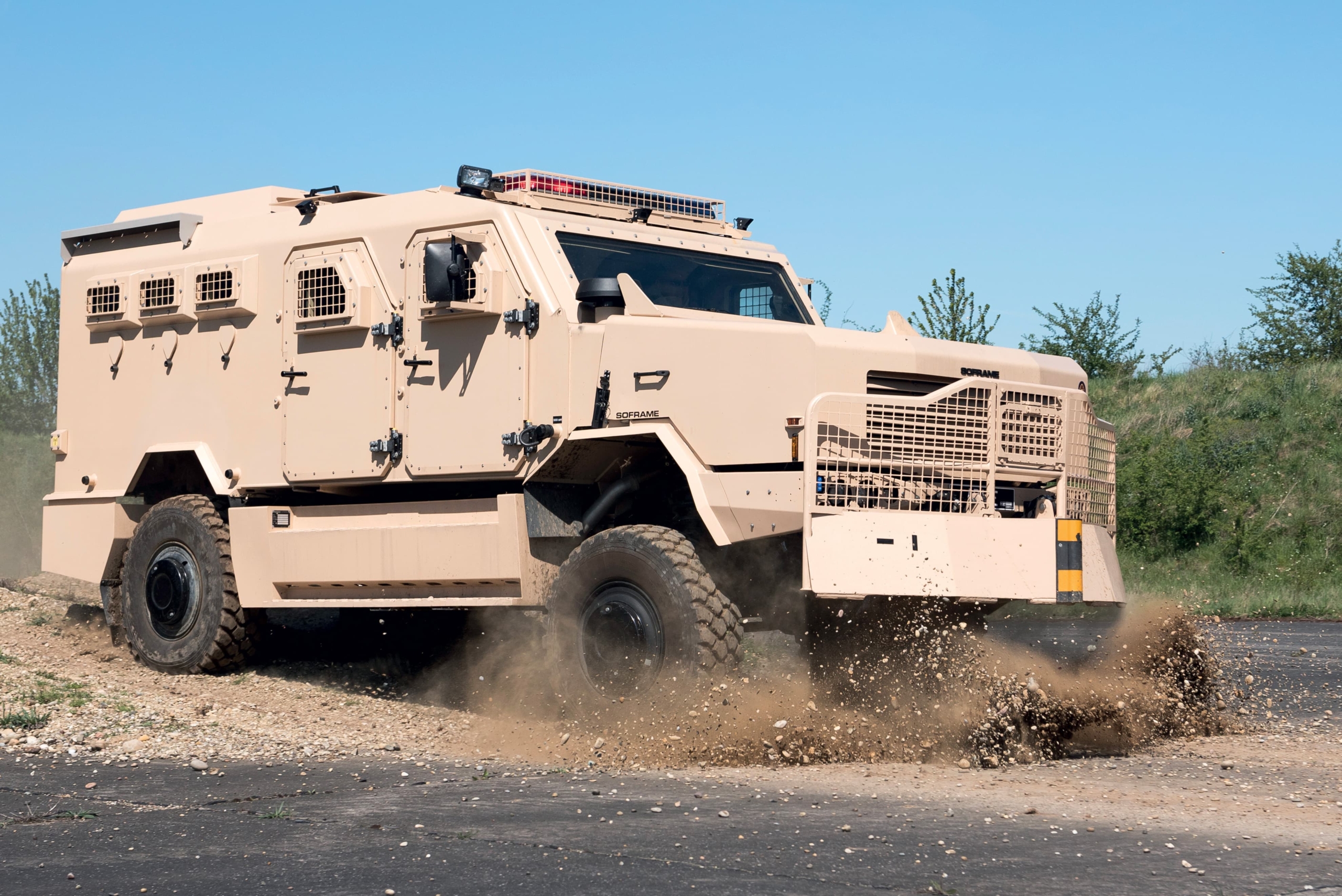

The T-LINER has been specifically designed and developed to improve the protection levels of your armoured vehicles.
We offer designs that meet the worldwide protection standards : AEP-55/EN1522/VPAM/NFA 36800…
And according to the requirements of severe environmental conditions: -35 °C/+75 °C.
The T-LINER is applied by gluing and mechanical fastening inside vehicles and can be slightly curved to adapt to complex shapes (consult us).
Delivered in panels of 1220 x 2440mm is defined according to our protection recommendations to protection recommendations, we recommend CO2 laser cutting. But a mechanical cutting method is also possible.
We are able to supply cut parts according to your requirements: Consult us !
Specifications
| Layers | Thickness | Mass per unit area |
| 21 | 6.5 mm | 8 kg/m2 |
| 30 | 9.5 mm | 11.5 kg/m2 |
| 37 | 11.5 mm | 14.5 kg/m2 |
Areal density ~ 1.3
Lifespan ≥ 20 ans
Ozone and UV resistant
No water effect
No toxic gases during combustion
COV *, CMR * free
* COV = Volatile, Organic Compound * CMR = Carcinogenic, Mutagenic, Reprotoxic
